BMW E8X/E9X - CNC71 Pro Steering Lock Kit

by CNC71
Original price £1,637.72 - Original price £1,637.72
Original price
£1,637.72 - £1,637.72
Current price £1,637.72
Please be aware that some CNC71 products are on backorder. Please contact us to confirm how long your order might take.

  • This CNC71 Pro Kit front suspension set is dedicated to BMW 1 Series E8x and BMW 3 Series E9x.


    The set guarantees an increase in steering angle up to 68 degrees, changes the Ackerman steering geometry and allows for quick adjustment without the need to dismantle the elements.
  • Perfectly fits into the original suspension mountings located in the car's chassis.
  • The product is made of high-quality steel and aluminium using precise CNC machines.

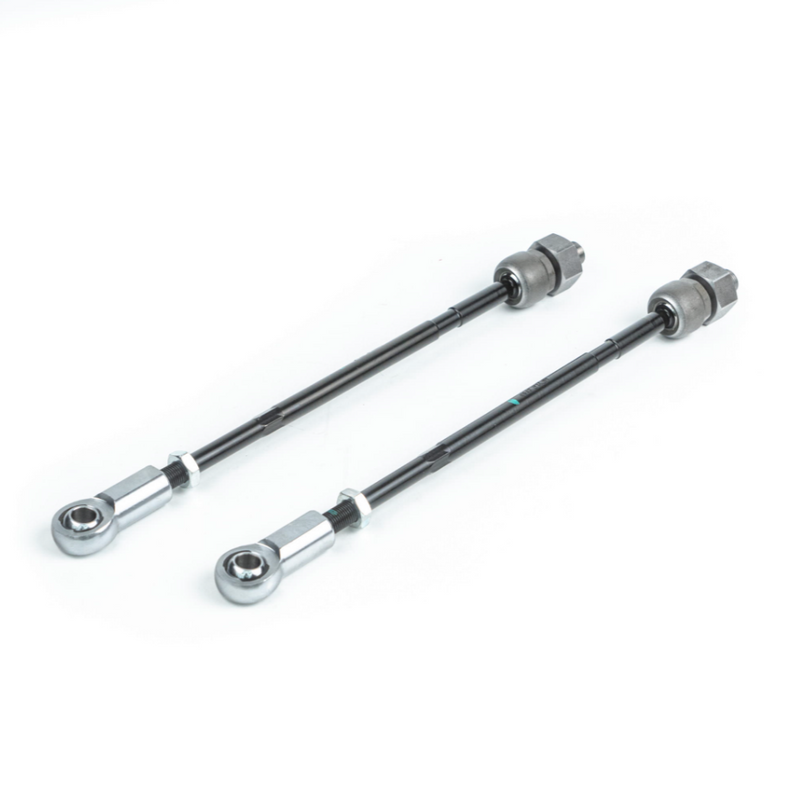

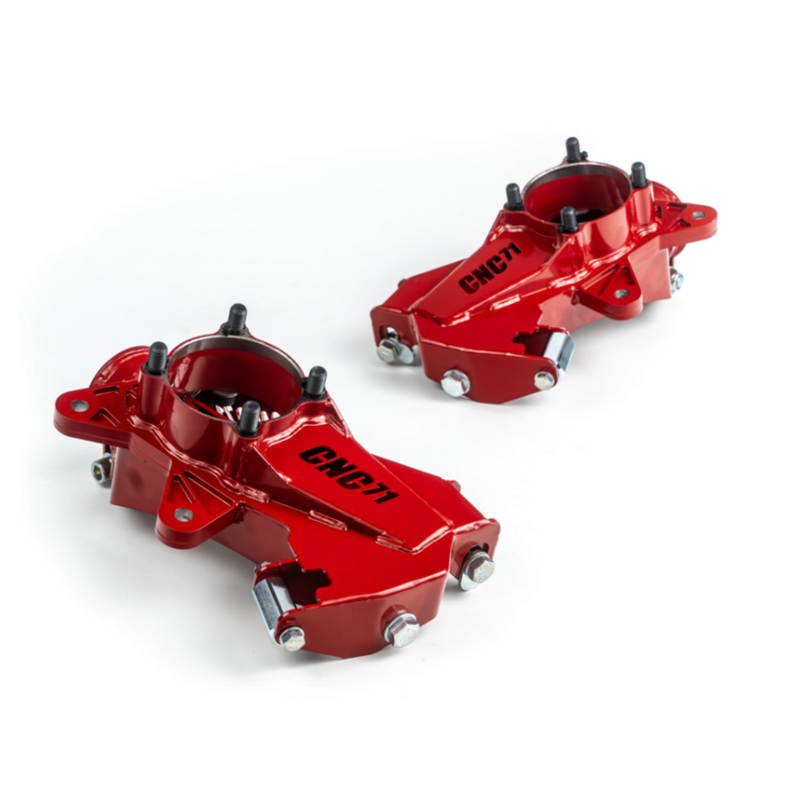

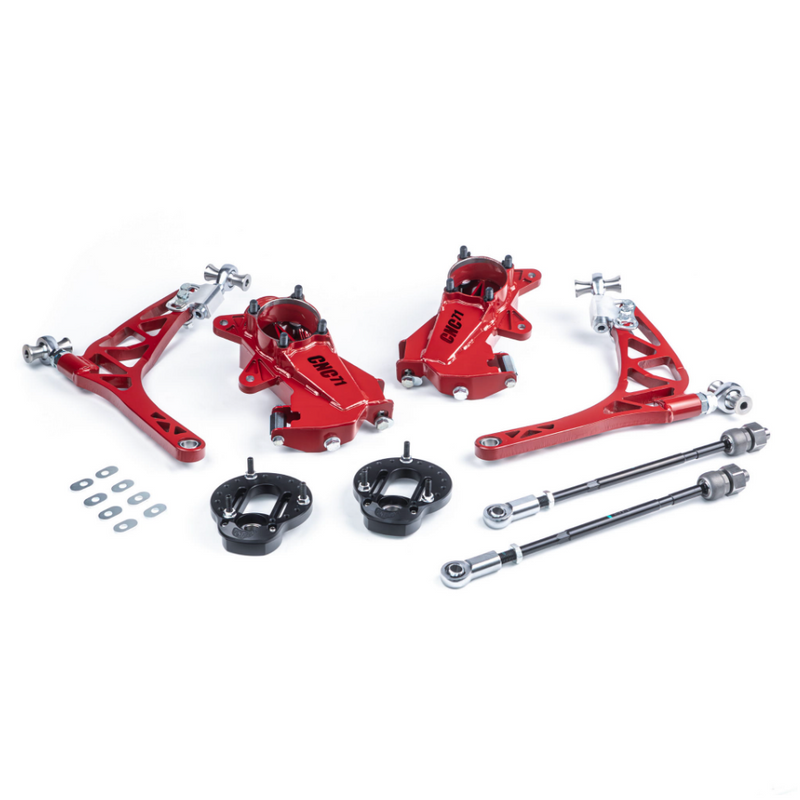

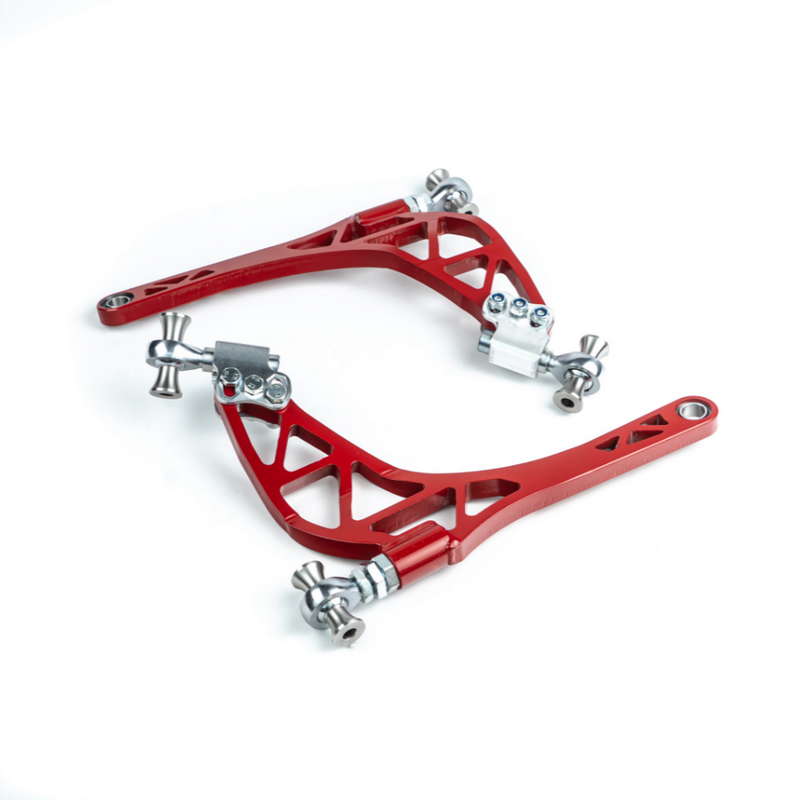

  • The kit includes lower wishbones, tie rod spacers, steering knuckles with all necessary hardware and installation instructions.
  • The individual elements of the set are protected by powder coating or galvanising.
  • The use of spherical bearings eliminated the need for rubber bushings, providing a more direct and reactive feeling on the track.
  • For those who want to adjust the alignment of their vehicle, the kit has specific parameters and a toe setting that adjusts depending on Ackerman angle measurements:
    - Camber angle: -5.5 degrees
    - Caster angle: 6.5 degrees

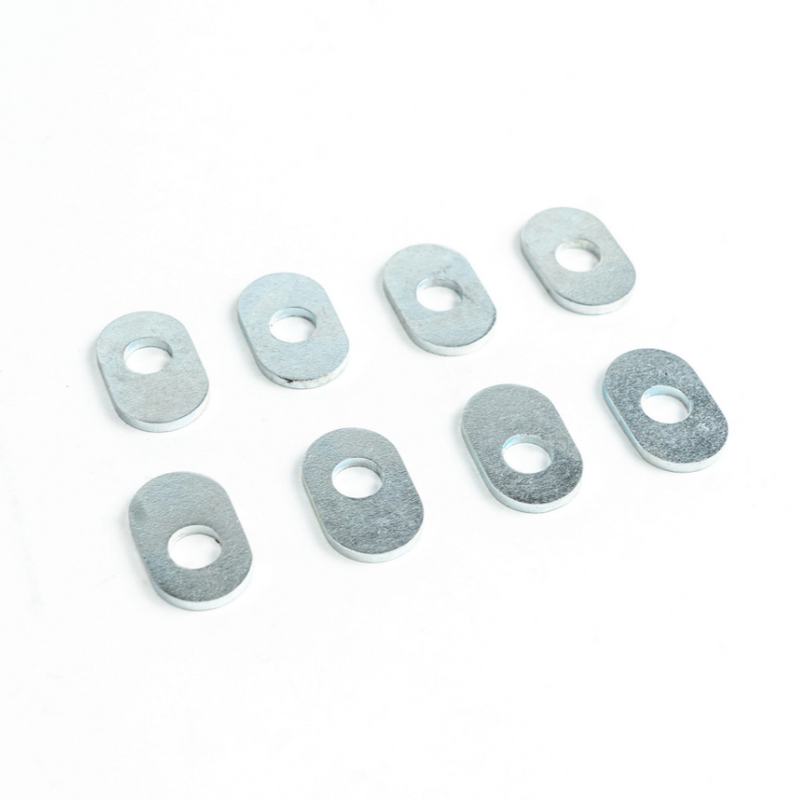

  • The set offers 68 degrees of rotation, with the option of quick Ackerman adjustment from positive to negative by using special washers. This allows you to quickly modify the driving characteristics of the vehicle to adapt it to the prevailing conditions and driver preferences. The set also has an easy-to-set twist reduction using an eccentric sleeve.
  • In addition, the kit raises the roll center, which reduces the vehicle's tendency to tilt in corners. The product allows you to set the wheels in a way that minimises the car's deviation from the track at a wide range of steering angles, this fact is crucial for maintaining the grip of the front wheels and the predictability of the car's driving during drift manoeuvres.
  • The set is plug and play, the attached manual contains all the necessary data to set the car in the initial position. The kit provides the necessary space for installing the coilover suspension that is required.


  • The range of wheels compatible with the set is between 17" and 19" (inches) provided that the inner diameter of the rim cannot be less than 400mm.
  • Fitting by an experienced mechanic is strongly recommended. Destroy Or Die are not responsible for any damage caused due to incorrect fitting or assembly.
  • Not for road use.
  • International shipping rates exclude any import duties/taxes/fees payable by the customer directly to the shipper prior to the release of goods.

Additional Information:

  • Brand: CNC71
  • If necessary, all spare parts are available from the manufacturer's warehouse - contact us for more information.
