BMW E30 (5x120) Angle Kit

by CNC71
Original price £474.81 - Original price £664.83
Original price
£474.81 - £664.83
Current price £474.81
Please be aware that some CNC71 products are on backorder. Please contact us to confirm how long your order might take.

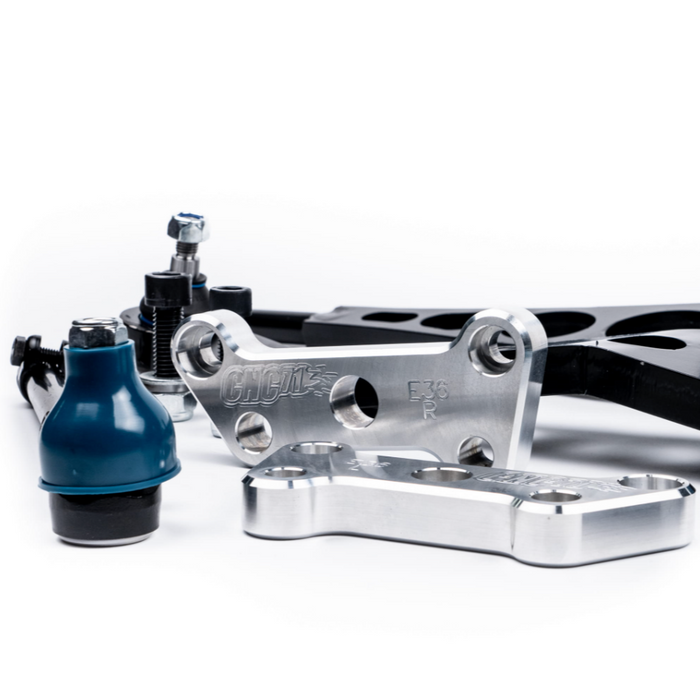

  • The adapters are milled on CNC machines, which gives a high quality finish and 100% matching of the adapter to the steering knuckle and pin ends.

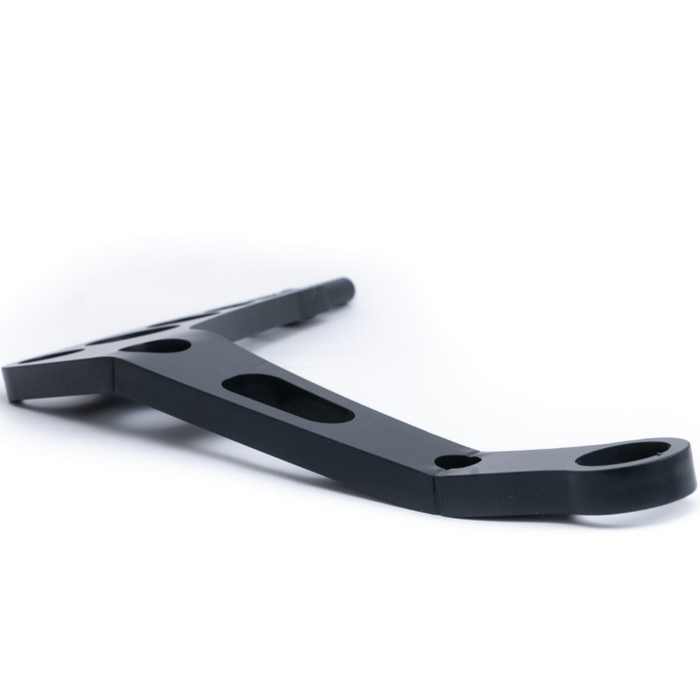

  • The swing arm is lasercut and has precisely machined holes for the pins and stabilizer mounting (CNC71 recommend its installation for better handling of the car whilst drifting, especially if the suspension is not heavily hardened).
  • To install the kit, you need to move the upper shock absorber mounting outwards via camber, relocator or E36 M3 cushion (CNC71 recommend the latter as a simple and reliable option).
  • The new design of the swing arm (without independent modification) does not allow the installation of a stabilizer bar. No hole for the connector.
  • The swing arm is 4cm longer than the stock one, the adapter moves the wheel 2cm. A total of 6cm on the widening side.
  • There are 62 degrees of twist to be achieved.

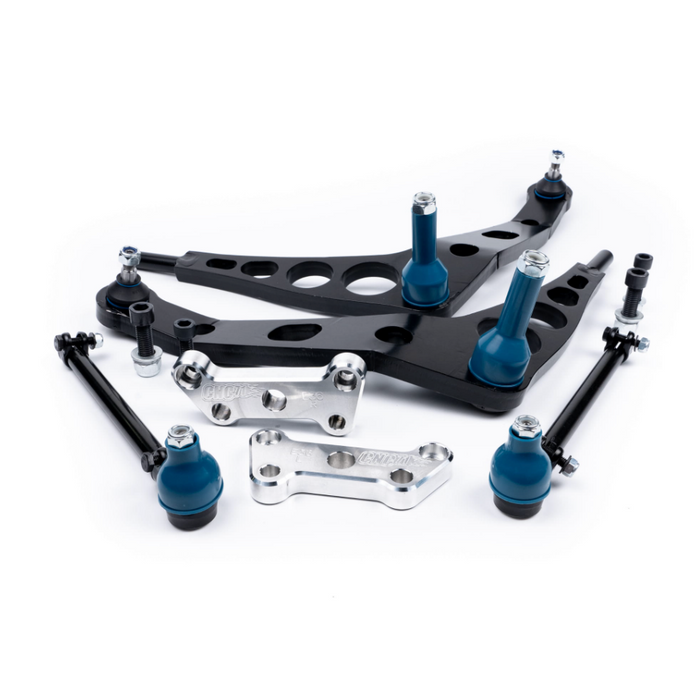

Contents (Basic Kit):

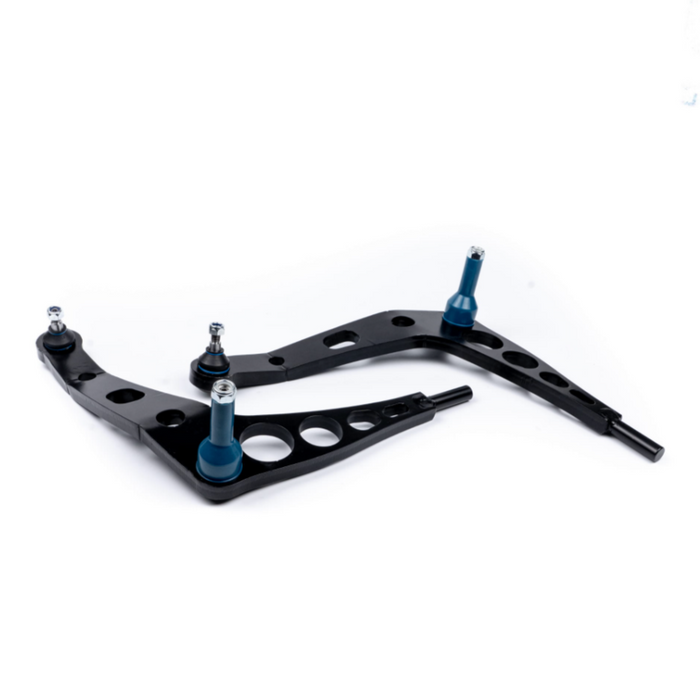

  • 1x Front left arm
  • 1x Front right arm
  • 1x Front left arm adapter
  • 1x Front right arm adapter
  • 4x Mounting Screws
  • Assembly instructions

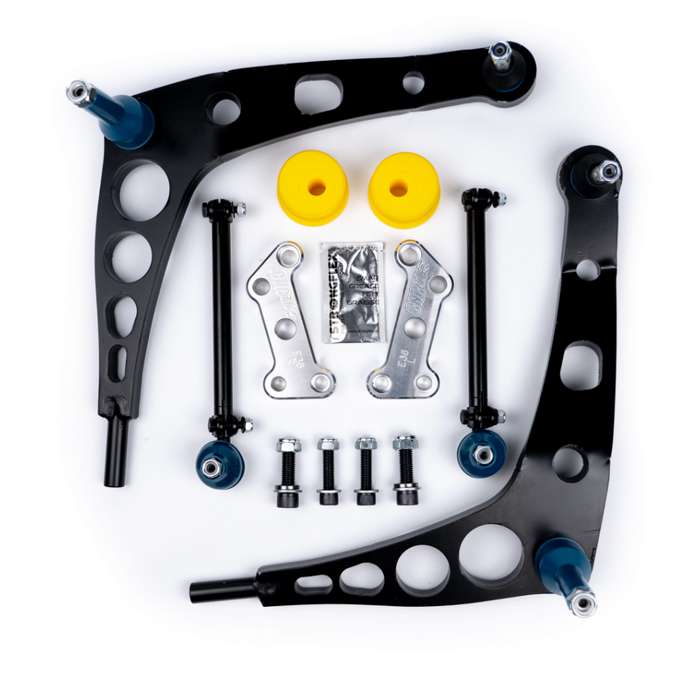

Contents (Full Kit/Plug & Play):
  • 1x Front left arm
  • 1x Front right arm
  • 1x Front left arm adapter
  • 1x Front right arm adapter
  • 2x Rack spacers
  • 2x Polyurethane bushings
  • 2x Tie rods
  • 2x Inner Ball Joints
  • 2x Outer Ball Joints
  • 6x Fasteners
  • Assembly instructions


  • Due to the small wheel arch of the E30, it has to be tapped out at the rear or cut out and re-shaped.
  • Depending on the wheel parameters, installing washers under the steering rack may cause a collision with the side member.
  • Camber adjustable top mounts are needed for using the kit - Most aftermarket coilovers will have camber adjustable top mounts included so if you have coilovers fitted you may already have them.
  • Fitting by an experienced mechanic is strongly recommended. Destroy Or Die are not responsible for any damage caused due to incorrect fitting or assembly.
  • Not for road use.
  • International shipping rates exclude any import duties/taxes/fees payable by the customer directly to the shipper prior to the release of goods.

Additional Information:

  • Brand: CNC71
