Nissan 350Z / Infiniti G35 Adjustable Rear Lower Control Arm Kit

• Full set of adjustable rear suspension arms for the Nissan 350Z from CNC71 Motorsport.
• Made of S355 steel, on CNC machines, welded using the MAG and TIG methods.
• 100% match to the serial steering knuckle pin, adapted for polyurethane bushings with a hardness of 90Sha.
• Adjustment with turnbuckles. The swingarm mounting is based on a ball bearing.
• An ideal solution for lowering the car to achieve the desired effect of fitting the wheels to the body - which is ideal for lowered suspension.
• Thanks to the adjustment range in "+" and "-", the swing arm allows you to obtain maximum traction of the vehicle on the drive axle.

• The total adjustment range is approximately 30mm (280mm - 310mm). Compared to the original swing arm (300mm), it can be shortened by 20mm or extended by 10mm.
• The upper wishbone allows you to change mainly the wheel camber angle.
• 1x Rear left adjustable upper wishbone
• 1x Rear right adjustable upper wishbone
• 2x M18 Uniball
• Uniball insert set (crossover mount)
• Lock nuts for uniball
• Screw set
• Special insert for adjusting the swingarm length

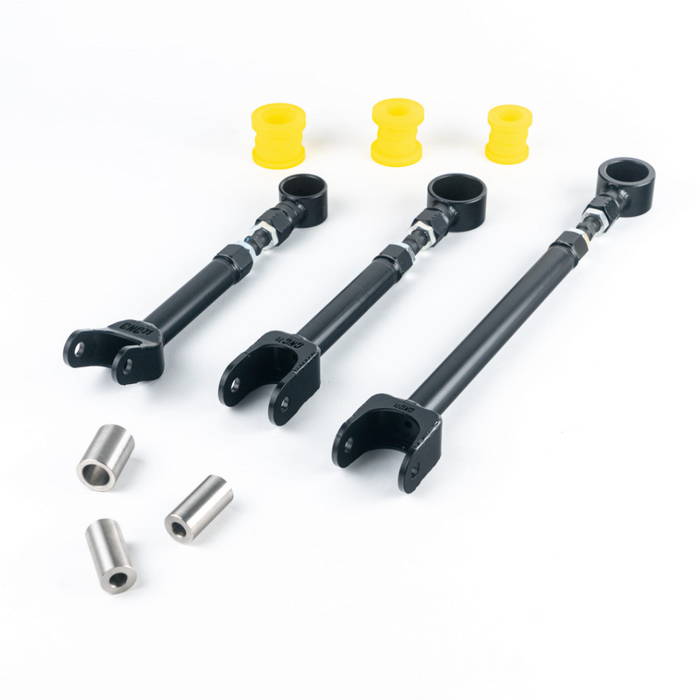

Adjustable rear traction rods:

• The total adjustment range is approximately 30mm (322mm - 352mm). Compared to the original swing arm (332mm), it can be shortened by 10mm or extended by 20mm.
• Traction rod allows you to change mainly toe and camber.
• 2x Adjustable rear traction rods
• 2x Lock nuts
• Screw set
• Roman screw

Adjustable Rear Lower Control Arms:

• The total adjustment range is approximately 30mm (298mm - 328mm). Compared to the original swing arm (308mm), it can be shortened by 10mm or extended by 20mm.
• The adjustable lower wishbone allows you to change mainly the toe and camber angle.
• 2x Adjustable lower rear wishbones
• 2x Lock nuts
• Screw set
• Roman screw

Adjustable rear coil links for Nissan:

• The total adjustment range is approximately 30mm (435mm - 465mm). Compared to the original swing arm (445mm), it can be shortened by 10mm or extended by 20mm.
• Coil link allows you to change mainly toe and camber.
• 2x Adjustable rear coil links
• 2x Lock nuts
• Screw set
• Roman screw

Warnings:

• Full adjustment can only be achieved by using a full set of rear suspension arms for the Nissan 350Z from CNC71 Motorsport.
• Fitting by an experienced mechanic is strongly recommended. Destroy Or Die are not responsible for any damage caused due to incorrect fitting or assembly.
• Not for road use.
• International shipping rates exclude any import duties/taxes/fees payable by the customer directly to the shipper prior to the release of goods.

Additional Information:

• Brand: CNC71
