The Limit Break Battery Monitor is an innovative take on a battery bracket. They added the ability to measure your batteries voltage with the press of a button. Check your engine oil with your dipstick and check your electrical system with the Limit Break Battery Monitor. The waterproof voltmeter can be used to check your standing battery voltage, to monitor a potential drain and even to check your alternator is charging the battery correctly.
- The Battery Monitor comes black powdercoated for a resilient and premium finish.
- It is connected to the battery simply with 2 ring crimps that slip around the battery terminal clamp screws.

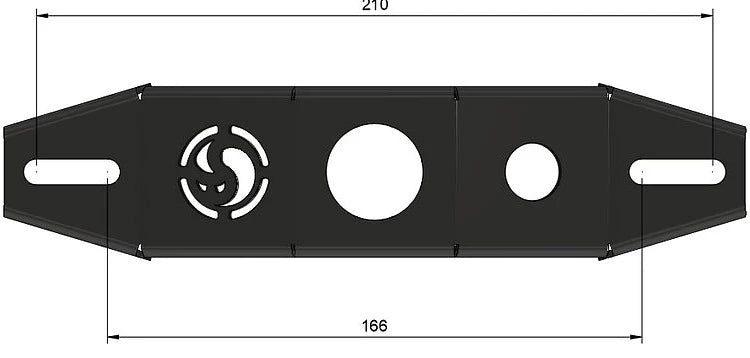

- There are 2 sizes available, the dimensions of the fixing slots for each size can be found in product photos.
- The outer dimensions are: Small - 170 x 53 x 27mm / Large - 230 x 53 x 29mm

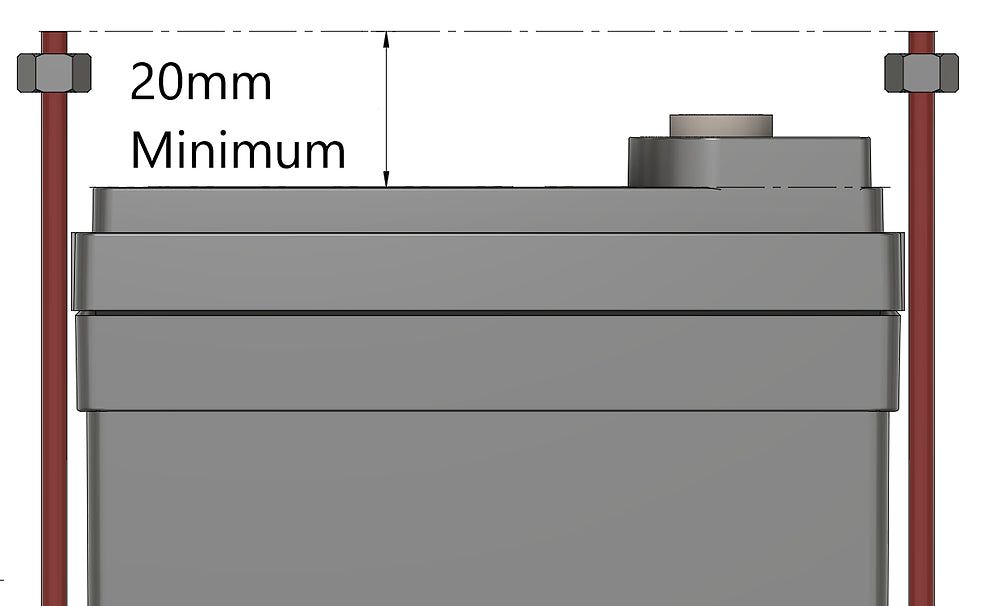

- Please refer to the final image that shows the minimum threaded post height above the battery. If your posts aren't raised at least 20mm above the surface of the battery, please select the thread extension option and we will provide 2x M6 thread extension and securing screws.
- Limit Break Automotive products are intended for off-road use only.
